Create two half spheres and save them in a vtp file by ParaView. We will use it to explore an algorithm that finds the two separated cut list and sort all points in every list.

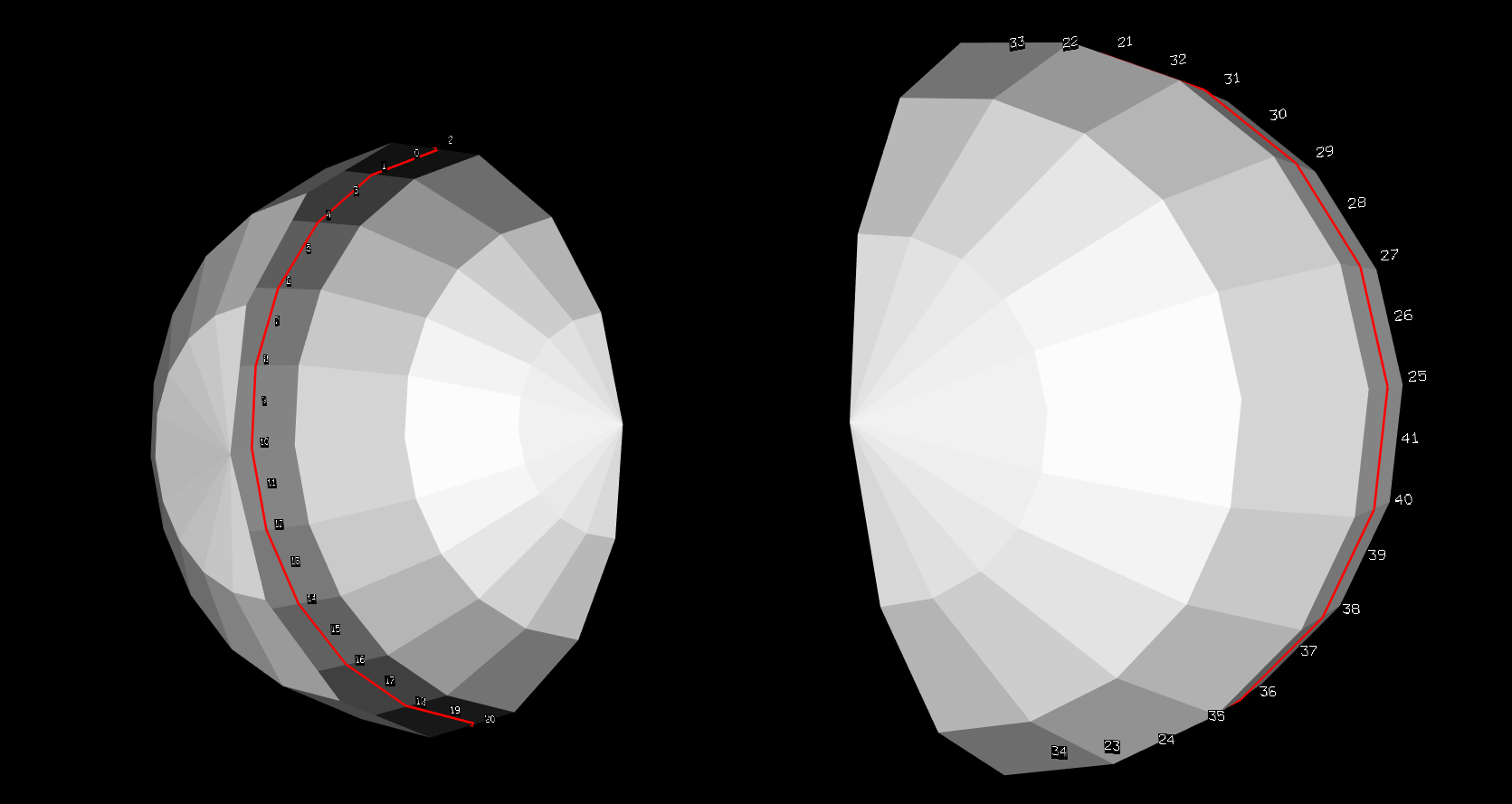

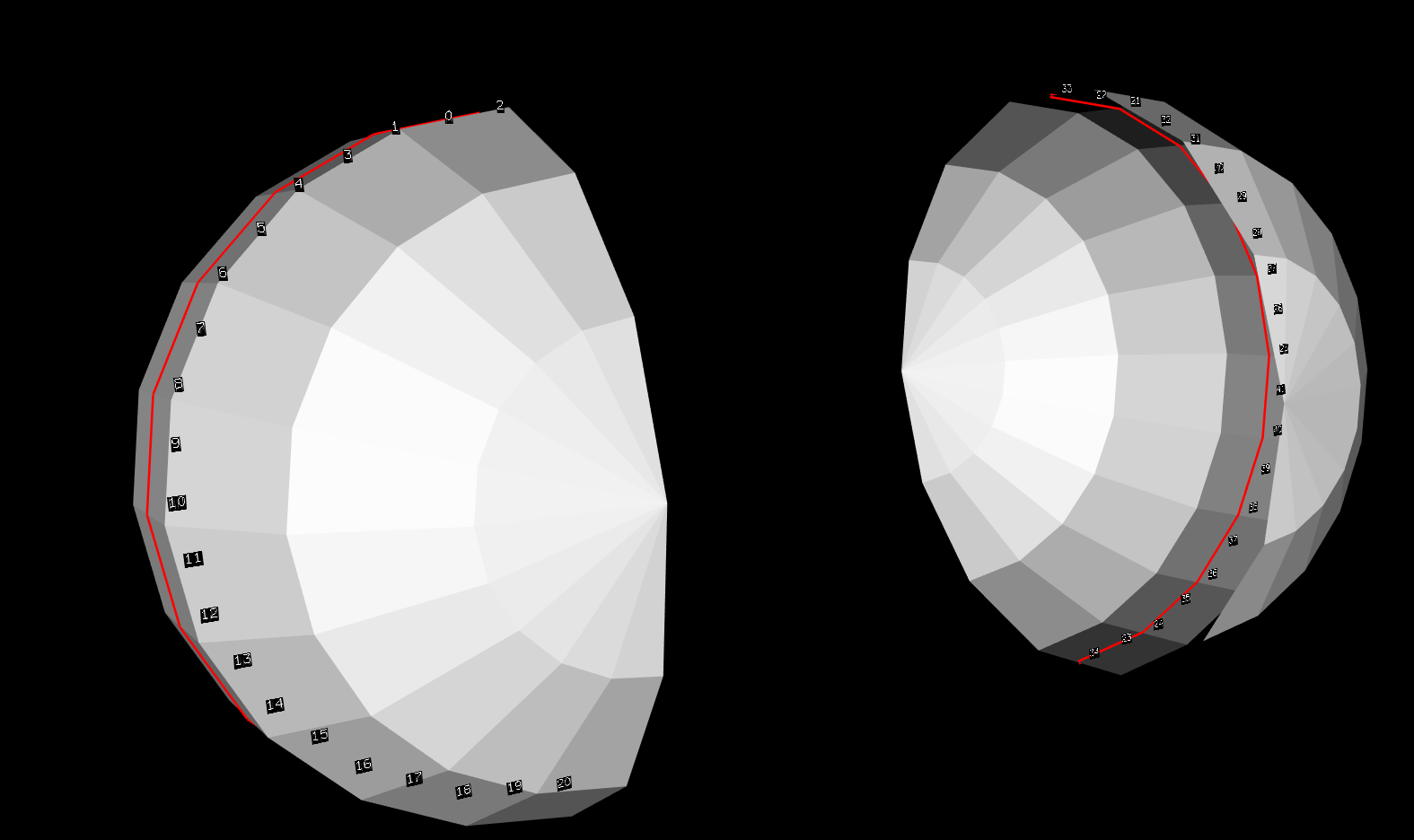

The original scene is like the following images. Use vtkCutter to create cut lines that had been marked red color. Then we show the index number of every point by vtkActor2D object.
We can find that the points in the two list are out of order.


How to find the two separated cut list and sort all points in every list after we get all lines from vtkCutter object?
1. Find a point which is not visited.
2. Start to search the next point or last one from current point by connected relationship.

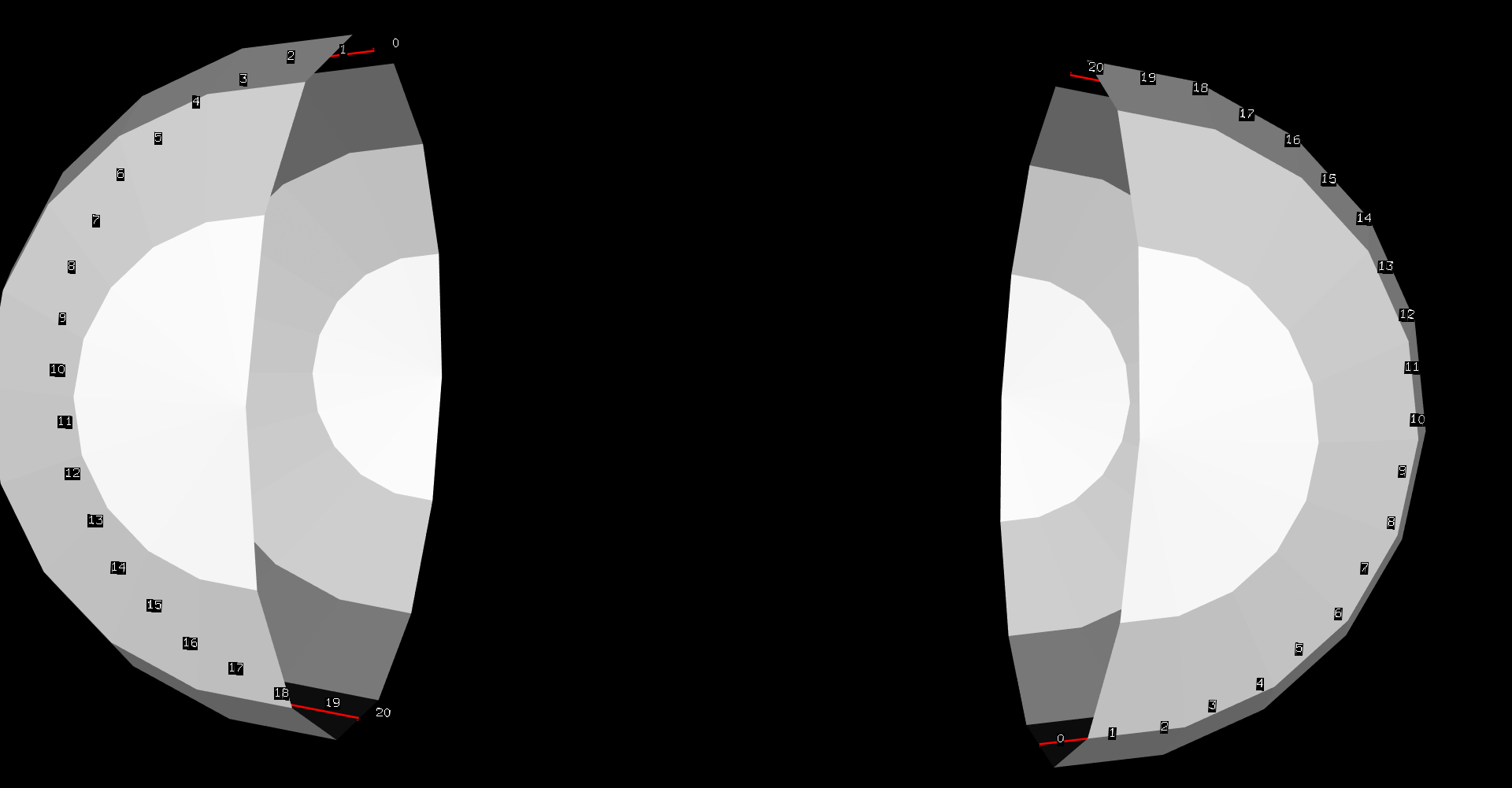

3. Sort all points in the list by visit time.
4. FInd the next point which had not been visited and go back to the step 2.

Here are implementation details.
main.cpp:

#include <vtkSmartPointer.h>
#include <vtkActor.h>
#include <vtkRenderer.h>
#include <vtkRenderWindow.h>
#include <vtkPolyDataMapper.h>
#include <vtkRenderWindowInteractor.h>
#include <vtkProperty.h>
#include <vtkXMLPolyDataReader.h>
#include <vtkPoints.h>
#include <vtkPlane.h>
#include <vtkCutter.h>
#include <vtkXMLPolyDataReader.h>

#include "ListsFilter.h"

using namespace std;

vtkSPtr<vtkRenderer> renderer;

int main()
{
    vtkSPtrNew( reader, vtkXMLPolyDataReader );
    reader->SetFileName( "../items.vtp" );
    reader->Update();

    vtkSPtrNew( mapper, vtkPolyDataMapper );
    mapper->SetInputData( reader->GetOutput() );

    vtkSPtrNew( actor, vtkActor );
    actor->SetMapper( mapper );

    vtkSPtrNew( clipPlane, vtkPlane );
    clipPlane->SetOrigin( 0, 0, 0 );
    clipPlane->SetNormal( 0, 0, 1 );

    vtkSPtrNew( cutter, vtkCutter );
    cutter->SetInputData( reader->GetOutput() );
    cutter->SetCutFunction( clipPlane );
    cutter->Update();

    vtkPolyData *cutPd = cutter->GetOutput();
    vtkSPtrNew( cutMapper, vtkPolyDataMapper );
    cutMapper->SetInputData( cutPd );

    vtkSPtrNew( cutActor, vtkActor );
    cutActor->SetMapper( cutMapper );
    cutActor->GetProperty()->SetColor( 1, 0, 0 );
    cutActor->GetProperty()->SetLineWidth( 5 );

    renderer = vtkSPtr<vtkRenderer>::New();
    renderer->AddActor( cutActor );
    renderer->AddActor( actor );
    renderer->SetBackground( 0, 0, 0 );

    vtkCellArray *lines = cutPd->GetLines();
    ListsFilter listF( lines );
    listF.SetPolyData( cutPd ); // for debug
    listF.SetRenderer( renderer ); // for debug
    listF.Init();
    //listF.ShowOriginalPoints();
    listF.Update();

    for( int i = 0; i < listF.GetListsCount(); ++i )
    {
        vtkSPtr<vtkIdList> list = listF.GetList( i );
        listF.ShowPointsByListOrder( list );
    }

    vtkSPtrNew( renderWindow, vtkRenderWindow );
    renderWindow->AddRenderer( renderer );

    vtkSPtrNew( renderWindowInteractor, vtkRenderWindowInteractor );
    renderWindowInteractor->SetRenderWindow( renderWindow );

    renderer->ResetCamera();
    renderWindow->Render();
    renderWindowInteractor->Start();
    return 0;
}

All algorithm logic is written in class ListsFilter.

ListsFilter.h:

#pragma once

#include <vtkCellArray.h>
#include <QMap>
#include <QVector>
#include <QSharedPointer>
#include <vtkPolyData.h>
#include <vtkRenderer.h>
#include <vtkSmartPointer.h>
#include <vtkProperty.h>
#include <vtkTextSource.h>
#include <vtkTransformPolyDataFilter.h>
#include <vtkCoordinate.h>
#include <vtkPolyDataMapper2D.h>
#include <vtkActor2D.h>
#include <vtkProperty.h>

#define vtkSPtr vtkSmartPointer
#define vtkSPtrNew(Var, Type) vtkSPtr<Type> Var = vtkSPtr<Type>::New();

#define IsDebug 0

class ListsFilter
{
public:
    struct EdgePt
    {
        EdgePt(): next( nullptr ), last( nullptr ), ptId( -1 ) {}
        ~EdgePt(){ next = nullptr; last = nullptr; ptId = -1; }

        EdgePt *next;
        EdgePt *last;
        vtkIdType ptId;
    };
    enum SearchType{ E_Backward, E_Forward };

    ListsFilter( vtkCellArray *lines );
    ~ListsFilter();
    void Init();
    void Update();
    int GetListsCount();
    vtkSPtr<vtkIdList> GetList( const int &index );

    // === debug function ===
    void SetPolyData( vtkPolyData *_data );
    void SetRenderer( vtkRenderer *_Renderer );
    void ShowPoint( vtkIdType ptId );
    void ShowOriginalPoints();
    void ShowPointsByListOrder( vtkSPtr<vtkIdList> list );
protected:
    void Search(const vtkIdType &ptId, vtkSPtr<vtkIdList> list);
    vtkIdType SearchBackwards( const vtkIdType &ptId, vtkSPtr<vtkIdList> list );
    vtkIdType SearchForwards( const vtkIdType &ptId, vtkSPtr<vtkIdList> list );

    QVector<vtkSPtr<vtkIdList>> m_SegmentLists;
    vtkCellArray *m_Lines;
    QMap<vtkIdType, QSharedPointer<EdgePt>> m_EdgePts;
    QVector<vtkIdType> m_VisPtIds;

    // ===== debug actor ======
    vtkSPtr<vtkPolyData> m_PolyData;
    vtkSPtr<vtkRenderer> m_Renderer;
};

ListsFilter.cpp

#include "ListsFilter.h"

#include <vtkIdList.h>
#include <vtkSphereSource.h>
#include <vtkPolyDataMapper.h>
#include <vtkProperty.h>
#include <vtkTransform.h>

ListsFilter::ListsFilter(vtkCellArray *lines)
{
    m_Lines = lines;
    m_PolyData = nullptr;
    m_Renderer = nullptr;
}

ListsFilter::~ListsFilter()
{
    m_Lines = nullptr;
    m_EdgePts.clear();
}

void ListsFilter::Init()
{
    m_VisPtIds.clear();
    m_SegmentLists.clear();
    m_Lines->InitTraversal();
    vtkSPtrNew( cell, vtkIdList );
    while( m_Lines->GetNextCell( cell ) )
    {
        auto id0 = cell->GetId( 0 );
        auto id1 = cell->GetId( 1 );

        QSharedPointer<EdgePt> edgePt0 = nullptr;
        if( m_EdgePts.contains( id0 ) )
        {
            edgePt0 = m_EdgePts[ id0 ];
        }
        else
        {
            edgePt0 = QSharedPointer<EdgePt>( new EdgePt() );
            edgePt0->ptId = id0;
        }

        QSharedPointer<EdgePt> edgePt1 = nullptr;
        if( m_EdgePts.contains( id1 ) )
        {
            edgePt1 = m_EdgePts[ id1 ];
        }
        else
        {
            edgePt1 = QSharedPointer<EdgePt>( new EdgePt() );
            edgePt1->ptId = id1;
        }

        edgePt0->next = edgePt1.get();
        edgePt1->last = edgePt0.get();

        m_EdgePts[ id0 ] = edgePt0;
        m_EdgePts[ id1 ] = edgePt1;
        std::cout << id0 << "\t" << id1 << std::endl;

#if IsDebug
        if( 41 == id0 && 25 == id1 )
        {
            ShowPoint( id0 );
            ShowPoint( id1 );
        }
#endif
    }

    std::cout << "m_Lines count: " << m_Lines->GetNumberOfCells() << std::endl;
    std::cout << "m_EdgePts count: " << m_EdgePts.size() << std::endl;
}

vtkIdType ListsFilter::SearchBackwards(const vtkIdType &ptId, vtkSPtr<vtkIdList> list )
{
    vtkIdType currentId = ptId;
    while( m_EdgePts.contains( currentId ) && m_EdgePts[ currentId ]->last )
    {
        EdgePt *pt = m_EdgePts[ currentId ]->last;
        if( m_VisPtIds.contains( pt->ptId ) )
        {
            break;
        }
        list->InsertUniqueId( pt->ptId );
        currentId = pt->ptId;
        m_VisPtIds.push_back( currentId );
    }
    return currentId;
}

vtkIdType ListsFilter::SearchForwards(const vtkIdType &ptId, vtkSmartPointer<vtkIdList> list)
{
    vtkIdType currentId = ptId;
    while( m_EdgePts.contains( currentId ) && m_EdgePts[ currentId ]->next )
    {
        EdgePt *pt = m_EdgePts[ currentId ]->next;
        if( m_VisPtIds.contains( pt->ptId ) )
        {
            break;
        }
        list->InsertUniqueId( pt->ptId );
        currentId = pt->ptId;
        m_VisPtIds.push_back( currentId );
    }
    return currentId;
}

void ListsFilter::Update()
{
    QMapIterator<vtkIdType, QSharedPointer<EdgePt>> it( m_EdgePts );
    while( it.hasNext() )
    {
        it.next();
        vtkIdType ptId = it.key();
        if( m_VisPtIds.contains( ptId ) )
        {
            continue;
        }

        // ============== start to search ==============
        vtkSPtrNew( list, vtkIdList );
        Search( ptId, list );
        m_SegmentLists.push_back( list );
        std::cout << "list size: " << list->GetNumberOfIds() << std::endl;
    }
    std::cout << "m_SegmentLists size: " << m_SegmentLists.size() << std::endl;
}

int ListsFilter::GetListsCount()
{
    return m_SegmentLists.size();
}

vtkSmartPointer<vtkIdList> ListsFilter::GetList(const int &index)
{
    if( index < m_SegmentLists.size() && index >= 0 )
    {
        return m_SegmentLists[ index ];
    }
    return nullptr;
}

void ListsFilter::SetPolyData(vtkPolyData *_data)
{
    m_PolyData = _data;

}

void ListsFilter::SetRenderer(vtkRenderer *_Renderer)
{
    m_Renderer = _Renderer;
}

void ListsFilter::ShowPoint(vtkIdType ptId)
{
    vtkSmartPointer<vtkSphereSource> sphereSource =
            vtkSmartPointer<vtkSphereSource>::New();
    sphereSource->SetCenter( m_PolyData->GetPoint( ptId ) );
    sphereSource->SetRadius( 0.02 );

    vtkSmartPointer<vtkPolyDataMapper> sphereMapper =
            vtkSmartPointer<vtkPolyDataMapper>::New();
    sphereMapper->SetInputConnection( sphereSource->GetOutputPort() );

    vtkSmartPointer<vtkActor> sphereActor =
            vtkSmartPointer<vtkActor>::New();
    sphereActor->SetMapper( sphereMapper );
    sphereActor->GetProperty()->SetColor( 0, 1, 0 );
    m_Renderer->AddActor( sphereActor );
}

void ListsFilter::ShowOriginalPoints()
{
    for( int i = 0; i < m_PolyData->GetNumberOfPoints(); ++i )
    {
        vtkSmartPointer<vtkTextSource> text2D =
            vtkSmartPointer<vtkTextSource>::New();
        text2D->SetText( QString::number( i ).toStdString().c_str() );

        vtkSmartPointer<vtkTransform> text2DTransform =
            vtkSmartPointer<vtkTransform>::New();
        double *center = m_PolyData->GetPoint( i );
        text2DTransform->Translate( center[0]+0.1, center[1], center[2] );
        text2DTransform->Scale( 0.005, 0.005, 0.005 );

        vtkSmartPointer<vtkTransformPolyDataFilter> text2DDataFilter =
            vtkSmartPointer<vtkTransformPolyDataFilter>::New();
        text2DDataFilter->SetTransform( text2DTransform );
        text2DDataFilter->SetInputConnection( text2D->GetOutputPort() );

        vtkSmartPointer<vtkCoordinate> coords =
            vtkSmartPointer<vtkCoordinate>::New();
        coords->SetCoordinateSystemToWorld();

        vtkSmartPointer<vtkPolyDataMapper2D> text2DMapper =
            vtkSmartPointer<vtkPolyDataMapper2D>::New();
        text2DMapper->SetInputConnection( text2DDataFilter->GetOutputPort() );
        text2DMapper->SetTransformCoordinate( coords );

        vtkSmartPointer<vtkActor2D> text2DActor =
            vtkSmartPointer<vtkActor2D>::New();
        text2DActor->SetMapper( text2DMapper );

        m_Renderer->AddActor( text2DActor );
    }
}

void ListsFilter::ShowPointsByListOrder(vtkSmartPointer<vtkIdList> list)
{
    for( int i = 0; i < list->GetNumberOfIds(); ++i )
    {
        vtkSmartPointer<vtkTextSource> text2D =
            vtkSmartPointer<vtkTextSource>::New();
        text2D->SetText( QString::number( i ).toStdString().c_str() );

        vtkSmartPointer<vtkTransform> text2DTransform =
            vtkSmartPointer<vtkTransform>::New();
        double *center = m_PolyData->GetPoint( list->GetId( i ) );
        text2DTransform->Translate( center[0]+0.1, center[1], center[2] );
        text2DTransform->Scale( 0.005, 0.005, 0.005 );

        vtkSmartPointer<vtkTransformPolyDataFilter> text2DDataFilter =
            vtkSmartPointer<vtkTransformPolyDataFilter>::New();
        text2DDataFilter->SetTransform( text2DTransform );
        text2DDataFilter->SetInputConnection( text2D->GetOutputPort() );

        vtkSmartPointer<vtkCoordinate> coords =
            vtkSmartPointer<vtkCoordinate>::New();
        coords->SetCoordinateSystemToWorld();

        vtkSmartPointer<vtkPolyDataMapper2D> text2DMapper =
            vtkSmartPointer<vtkPolyDataMapper2D>::New();
        text2DMapper->SetInputConnection( text2DDataFilter->GetOutputPort() );
        text2DMapper->SetTransformCoordinate( coords );

        vtkSmartPointer<vtkActor2D> text2DActor =
            vtkSmartPointer<vtkActor2D>::New();
        text2DActor->SetMapper( text2DMapper );

        m_Renderer->AddActor( text2DActor );
    }
}

void ListsFilter::Search(const vtkIdType &ptId, vtkSmartPointer<vtkIdList> list)
{
    const vtkIdType currentId = ptId;
    m_VisPtIds.push_back( ptId );

    vtkSPtrNew( list0, vtkIdList );
    int lastId0 = currentId;
    int currentId0 = SearchForwards( lastId0, list0 );
    SearchType type0 = E_Forward;

    while( currentId0 != lastId0 )
    {
        lastId0 = currentId0;
        if( type0 == E_Forward )
        {
            currentId0 = SearchBackwards( lastId0, list0 );
            type0 = E_Backward;
        }
        else
        {
            currentId0 = SearchForwards( lastId0, list0 );
            type0 = E_Forward;
        }
        //std::cout << "currentId0: " << currentId0 << ", lastId0: " << lastId0 << std::endl;
    }

    vtkSPtrNew( list1, vtkIdList );
    int lastId1 = currentId;
    int currentId1 = SearchBackwards( lastId1, list1 );
    SearchType type1 = E_Backward;
    while( currentId1 != lastId1 )
    {
        lastId1 = currentId1;
        if( type1 == E_Backward )
        {
            currentId1 = SearchForwards( lastId1, list1 );
            type1 = E_Forward;
        }
        else
        {
            currentId1 = SearchBackwards( lastId1, list1 );
            type1 = E_Backward;
        }
    }

    for( int i = list1->GetNumberOfIds() - 1; i >= 0; --i )
    {
        vtkIdType id = list1->GetId( i );
        list->InsertUniqueId( id );
    }
    list->InsertUniqueId( currentId );
    for( int i = 0; i < list0->GetNumberOfIds(); ++i )
    {
        vtkIdType id = list0->GetId( i );
        list->InsertUniqueId( id );
    }
}

Result:

m_Lines count: 40
m_EdgePts count: 42
currentId0: 20, lastId0: 20
list size: 21
currentId0: 33, lastId0: 33
list size: 21
m_SegmentLists size: 2
Categories: VTK

0 0 votes
Article Rating
Subscribe
Notify of
guest

1 Comment
Oldest
Newest Most Voted
Inline Feedbacks
View all comments
trackback

[…] implementation details of the CPlusPlus class ListsFilter can be found in VTK – Find Connected Lists And Sort All Points In Them, the relevant files are ListsFilter.h and […]

Tex To PDF
: convert the Latex file which suffix is tex to a PDF file

X
1
0
Would love your thoughts, please comment.x
()
x
