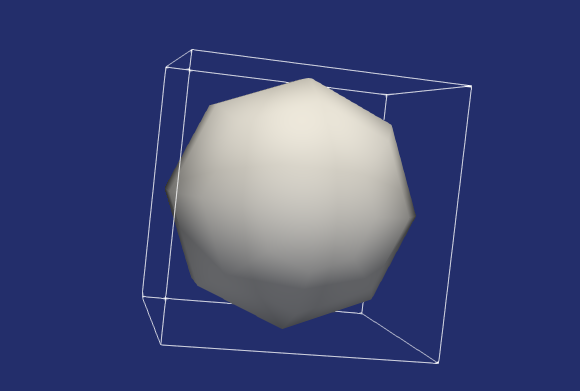

Create a sphere and the cube structure that is composed of many small points. We will compute the distance to the sphere for every point. Write the distance value to point data as scalars. Set different colors for the different distance ranges.



#include <iostream>
#include <vtkSmartPointer.h>
#include <vtkSphereSource.h>
#include <vtkActor.h>
#include <vtkRenderer.h>
#include <vtkRenderWindow.h>
#include <vtkPolyDataMapper.h>
#include <vtkRenderWindowInteractor.h>
#include <vtkPolyData.h>
#include <vtkColorTransferFunction.h>
#include <vtkImplicitPolyDataDistance.h>
#include <vtkProperty.h>
#include <vtkTriangleFilter.h>
#include <vtkFloatArray.h>
#include <vtkPointData.h>
#include <vtkVertexGlyphFilter.h>
#include <vtkColorTransferFunction.h>
#include <vtkPolyDataConnectivityFilter.h>
#include <vtkLinearSubdivisionFilter.h>
#include <vtkButterflySubdivisionFilter.h>
#include <vtkNamedColors.h>
#include <vtkClipPolyData.h>
#include <vtkVertexGlyphFilter.h>

#include "point.hpp"

int main()
{
    // Setup a grid
    vtkSmartPointer<vtkPoints> points =
      vtkSmartPointer<vtkPoints>::New();
    float step = 0.1;
    for(float x = - 2.0; x <= 2.0; x += step)
    {
        for(float y = - 2.0; y <= 2.0; y += step)
        {
            for(float z = - 2.0; z <= 2.0; z += step)
            {
                points->InsertNextPoint(x,y,z);
            }
        }
    }
    vtkSmartPointer<vtkPolyData> polyData =
            vtkSmartPointer<vtkPolyData>::New();
    polyData->SetPoints(points);

    vtkSmartPointer<vtkSphereSource> sphereSource =
            vtkSmartPointer<vtkSphereSource>::New();
    sphereSource->SetCenter(0.0, 0.0, 0.0);
    sphereSource->SetRadius(0.5);
    sphereSource->Update();

    vtkSmartPointer<vtkImplicitPolyDataDistance> implicitPolyDataDistance =
            vtkSmartPointer<vtkImplicitPolyDataDistance>::New();
    implicitPolyDataDistance->SetInput( sphereSource->GetOutput() );

    // Add distances to each point
    vtkSmartPointer<vtkFloatArray> signedDistances =
            vtkSmartPointer<vtkFloatArray>::New();
    signedDistances->SetNumberOfComponents(1);
    signedDistances->SetName("SignedDistances");

    // Evaluate the signed distance function at all of the grid points
    double maxValue = VTK_DOUBLE_MIN, minValue = VTK_DOUBLE_MAX;
    for(vtkIdType pointId = 0; pointId < points->GetNumberOfPoints(); ++pointId)
    {
        double p[3];
        points->GetPoint(pointId, p);
        double signedDistance = implicitPolyDataDistance->EvaluateFunction(p);
        signedDistances->InsertNextValue(signedDistance);
        maxValue = std::max( maxValue, signedDistance );
        minValue = std::min( minValue, signedDistance );
    }
    polyData->GetPointData()->SetScalars( signedDistances );
    std::cout << minValue << ", " << maxValue << std::endl;

    vtkSmartPointer<vtkVertexGlyphFilter> vertexGlyphFilter =
            vtkSmartPointer<vtkVertexGlyphFilter>::New();
    vertexGlyphFilter->SetInputData( polyData );

    vtkSmartPointer<vtkPolyDataMapper> signedDistanceMapper =
            vtkSmartPointer<vtkPolyDataMapper>::New();
    signedDistanceMapper->SetInputConnection( vertexGlyphFilter->GetOutputPort() );
    signedDistanceMapper->ScalarVisibilityOn();

    double colors[5][3] = { { 0, 0, 1},
                            { 0, 0.5, 0.5 },
                            { 0, 1, 0 },
                            { 0.5, 0.5, 0 },
                            { 1, 0, 0 } };
    vtkSmartPointer<vtkColorTransferFunction> colorFunction =
            vtkSmartPointer<vtkColorTransferFunction>::New();
    colorFunction->SetUseBelowRangeColor( true );
    colorFunction->SetBelowRangeColor( colors[0] );
    colorFunction->SetNanColor( colors[0] );
    colorFunction->AddRGBPoint( -0.4, colors[0][0], colors[0][1], colors[0][2] );
    colorFunction->AddRGBPoint( 0, colors[1][0], colors[1][1], colors[1][2] );
    colorFunction->AddRGBPoint( 0.6, colors[2][0], colors[2][1], colors[2][2] );
    colorFunction->AddRGBPoint( 1.5, colors[3][0], colors[3][1], colors[3][2] );
    colorFunction->AddRGBPoint( 2.9, colors[4][0], colors[4][1], colors[4][2] );
    colorFunction->Build();

    signedDistanceMapper->SetLookupTable( colorFunction );
    signedDistanceMapper->UseLookupTableScalarRangeOn();

    vtkSmartPointer<vtkActor> signedDistanceActor =
      vtkSmartPointer<vtkActor>::New();
    signedDistanceActor->SetMapper( signedDistanceMapper );

    vtkSmartPointer<vtkRenderer> renderer =
      vtkSmartPointer<vtkRenderer>::New();
    renderer->AddViewProp(signedDistanceActor);

    vtkSmartPointer<vtkRenderWindow> renderWindow =
            vtkSmartPointer<vtkRenderWindow>::New();
    renderWindow->AddRenderer( renderer );


    vtkSmartPointer<vtkRenderWindowInteractor> renWinInteractor =
            vtkSmartPointer<vtkRenderWindowInteractor>::New();
    renWinInteractor->SetRenderWindow( renderWindow );


    renderWindow->Render();
    renWinInteractor->Start();
    return 0;
}
