We often subtract mesh by other object to get the result we want.

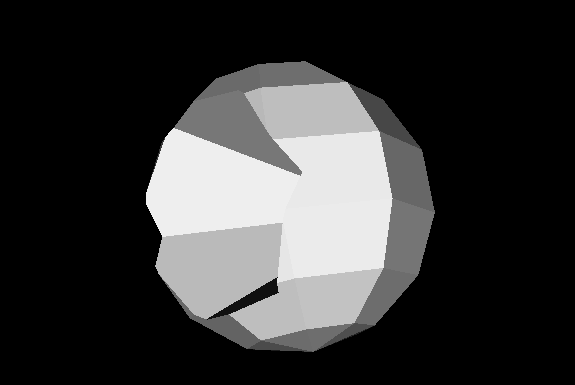

The scene looks like the following image.

#include <iostream>
#include <vtkSmartPointer.h>
#include <vtkSphereSource.h>
#include <vtkActor.h>
#include <vtkConeSource.h>
#include <vtkRenderer.h>
#include <vtkRenderWindow.h>
#include <vtkPolyDataMapper.h>
#include <vtkRenderWindowInteractor.h>
#include <vtkClipPolyData.h>
#include <vtkImplicitBoolean.h>
#include <vtkPlanes.h>
#include <vtkDataArray.h>
#include <vtkDoubleArray.h>
#include <vtkProperty.h>
#include <vtkBooleanOperationPolyDataFilter.h>

using namespace std;

#define vtkSPtr vtkSmartPointer
#define vtkSPtrNew(Var, Type) vtkSPtr<Type> Var = vtkSPtr<Type>::New();

int main()
{
    vtkSPtrNew( sphere, vtkSphereSource );
    sphere->Update();

    vtkSPtrNew( cone, vtkConeSource );
    cone->Update();

    vtkSPtrNew( boolean, vtkBooleanOperationPolyDataFilter );
    boolean->SetInputData( 0, sphere->GetOutput() );
    boolean->SetInputData( 1, cone->GetOutput() );
    boolean->SetOperationToDifference();
    boolean->Update();

    vtkSPtrNew( mapper, vtkPolyDataMapper );
    mapper->SetInputData( boolean->GetOutput() );
    mapper->SetScalarVisibility( false );

    vtkSPtrNew( actor, vtkActor );
    actor->SetMapper( mapper );

    vtkSPtrNew( renderer, vtkRenderer );
    renderer->AddActor(actor);
    renderer->SetBackground( 0, 0, 0 );

    vtkSPtrNew( renderWindow, vtkRenderWindow );
    renderWindow->AddRenderer( renderer );

    vtkSPtrNew( renderWindowInteractor, vtkRenderWindowInteractor );
    renderWindowInteractor->SetRenderWindow( renderWindow );

    renderer->ResetCamera();
    renderWindow->Render();
    renderWindowInteractor->Start();
    return 0;
}

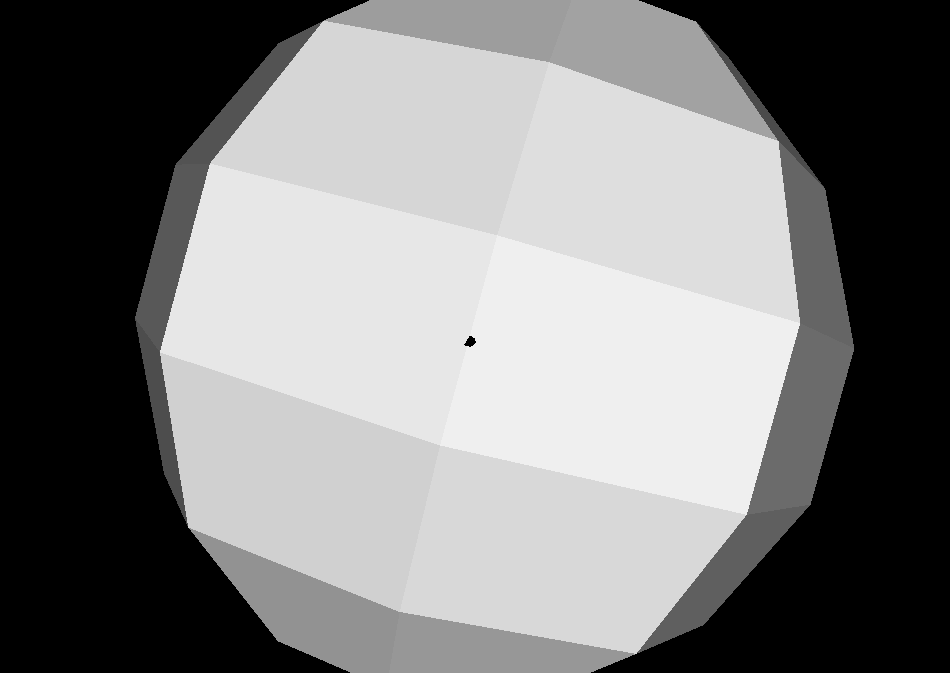

There may will be a hole on the surface of mesh due to the subtraction operation.

If we make the sphere bigger to contains the cone perfectly, the subtraction will not works and the program gives us the error information.

Change the size of sphere.

    sphere->SetRadius( 5 );

The height(length_ of cone is 1 by default.

2021-09-20 12:48:02.146 (   0.020s) [           3578D]    vtkPointLocator.cxx:845    ERR| vtkPointLocator (0x7fea5f624150): No points to subdivide
2021-09-20 12:48:02.147 (   0.021s) [           3578D]vtkIntersectionPolyData:2410  WARN| No Intersection between objects
2021-09-20 12:48:02.148 (   0.022s) [           3578D]vtkDistancePolyDataFilt:82     ERR| vtkDistancePolyDataFilter (0x7fea5f61ae50): No points/cells to operate on
