The post shows a template about how to send file to our remote server.
We need to prepare html page, javascript and php script.
HTML Page
Write a web page and import front.js that contains submit event.
front.html:
<!DOCTYPE html>
<html>
<body>
<div key="uploadMeshContent" id="content">
<input type="file" id="uploadMesh" name="uploadMesh"/>
<progress id="progressMesh" value="1" max="100"></progress> <br/>
<input id="subSTLButton" type="button" value="Submit" name="submit" />
</div>
<script type="text/javascript" src="front.js"></script>
<script>
document.getElementById('subSTLButton').onclick = subMesh;
</script>
</body>
</html>

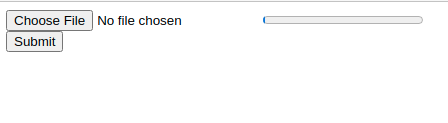

The rendering result:
JS code
We will change progress bar as sending file to remote server.
Start the next task when finish sending.
front.js:
function subMesh(){
var files = document.getElementById("uploadMesh").files;
if( files === undefined || files === "" )
{
alert("please choose file");
return false;
};
var form = new FormData();
form.append("fileObj", files[0]);
var xmlRequset = new XMLHttpRequest();
var url = "./uploadFile.php";
xmlRequset.open("post", url, true);
xmlRequset.upload.onprogress = progressFunctionMesh;
xmlRequset.onload = uploadCompleteMesh;
xmlRequset.onerror = uploadFailedMesh;
xmlRequset.send( form );
}
function progressFunctionMesh(event)
{
var value = Math.round(event.loaded / event.total * 100);
console.log( value );
document.getElementById("progressMesh").value = value;
}
function uploadCompleteMesh(evt) {
var text = evt.target.responseText;
console.log( text )
if( text.substr( 0, 4 ) === "url:" )
{
var url = text.substr( 4, text.length );
console.log( url );
// to do something
}
}
function uploadFailedMesh(evt) {
alert("failed to upload file!");
}
PHP Script
Write php script to receive the uploaded file in server side.
uploadFile.php:
<?php
$Debug = false;
if( $Debug )
{
ini_set('display_errors',1);
error_reporting(E_ALL);
}
function CheckFolder( $filePath )
{
$cmdStr = __DIR__ . '/checkFolder.py' . ' ' . $filePath;
$handle = popen( $cmdStr , 'r' );
if( false == $handle )
{
echo "failed: " . $cmdStr . "\n";
}
else
{
//echo "'$handle'; " . gettype($handle) . "\n";
pclose( $handle );
}
}
$fileAttr = $_FILES['fileObj'];
set_time_limit ( 0 );
$target_dir = $_SERVER["DOCUMENT_ROOT"] . "/projects/SimpleTools/3DModelEditor/build_wasm/upload";
$target_basename = basename($fileAttr["name"]);
$target_basename = str_replace( " ", "_", $target_basename ); //remove blank
$upload_file = $target_dir . "/" . $target_basename;
$uploadOk = 1;
$fileType = strtolower(pathinfo($upload_file,PATHINFO_EXTENSION));
CheckFolder( $upload_file );
// check uploads folder
if( !file_exists( $target_dir ) )
{
if( mkdir( $target_dir ) )
{
if( $Debug )
{
echo "Create upload folder successfully.\n";
}
}
else
{
echo "failed to create folder: " . $target_dir . "\n";
$uploadOk = 0;
}
}
// Check if $uploadOk is set to 0 by an error
if ($uploadOk == 0)
{
echo "Sorry, your file was not uploaded.\n";
exit( -1 );
// if everything is ok, try to upload file
}
else
{
if (move_uploaded_file($fileAttr["tmp_name"], $upload_file))
{
if( $Debug )
{
echo "The file ". $upload_file . " has been uploaded.\n";
}
echo "url:".$upload_file;
}
else
{
echo "Sorry, there was an error uploading your file: \n";
echo " ".$fileAttr["tmp_name"]." => ".$upload_file . "\n";
exit( -1 );
}
}
?>
Python Script For Folder Check
We use a python script to clear server folder if the uploaded files are too big. Make sure the server’s disk is enough.
checkFolder.py:
#!/usr/bin/python3
# -*- coding: utf-8 -*-
import os
import sys
import shutil
def getFolderSize( start_path ):
total_size = 0
for dirpath, dirnames, filenames in os.walk(start_path):
for f in filenames:
filePath = os.path.join(dirpath, f)
# skip if it is symbolic link
if not os.path.islink(filePath):
total_size += os.path.getsize(filePath)
return total_size
if __name__ == '__main__':
filePath = sys.argv[1]
# clear big folder: upload
folder = filePath[0:filePath.rindex( "/" )]
if getFolderSize( folder ) > 1024*1024*100:
shutil.rmtree( folder )
os.mkdir( folder )
